Our Screw Pile Products

Discover our expertly engineered screw piles and accessories, designed for superior strength and durability. Our catalog features a range of products to meet all your foundation needs, ensuring reliable and efficient solutions for every project.

Request a Quote

(855) 918-7453

Screw piles

High-strength galvanized steel screw piles engineered for long-term stability and performance. Designed for quick installation with minimal site disturbance, they deliver immediate load-bearing capacity in all soil conditions—ideal for residential, commercial, and industrial foundations.

Screw Piles Variations

Product	Exterior diameter	Length	Blade size	Technical sheet	Revit
P178	1 7/8"	7', 10'	8", 10"	View File	Download
P238	2 3/8"	7', 10'	8", 10", 12", 14", 16"	View File	Download
P312	3 1/2"	7', 10'	10", 12", 14", 16"	View File	Download
P412	4 1/2"	7', 10'	14", 16"	View File	Download
P512	5 1/2"	5' to 21'	12" to 24"	View File	Download
P658	6 5/8"	5' to 21'	14" to 24"	View File	Download

Extensions

Standard extensions

Product	Exterior diameter	Length	Technical sheet	Revit
EX178	1 7/8"	3', 5'	View File	Download
EX238	2 3/8"	3', 5', 7', 10'	View File	Download
EX312	3 1/2"	3', 5', 7', 10'	View File	Download
EX412	4 1/2"	5', 10'	View File	Download
EX512	5 1/2"	5' to 21'	View File	Download
EX658	6 5/8"	5' to 21'	View File	Download

Field extensions

Product	Exterior diameter	Technical sheet	Revit
FEX238	2 3/8"	View File	Download
FEX312	3 1/2"	View File	Download

Adapters

Regular adapters

Product	Exterior diameter	Technical sheet	Revit
A178	1 7/8"	View File	Download
A238	2 3/8"	View File	Download
A312	3 1/2"	View File	Download
A412	4 1/2"	View File	N/A

Wind lift securing adapters

Product	Exterior diameter	Technical sheet	Revit
AS178-238	1 7/8" or 2 3/8"	View File	Download
AS312	3 1/2"	View File	Download
AS412	4 1/2"	View File	N/A

Fixed heads

Concrete support heads

Product	Dimension	Exterior diameter	Interior diameter	Technical sheet	Revit
TFC8-238E/312I	8" x 8"	2 3/8"	3 1/2"	View File	Download

Blade support heads

Product	Dimension	Exterior diameter	Technical sheet	Revit
TFS-KB10-312E	8" x 10"	3 1/2"	View File	Download

Fixed U support heads

Product	Exterior diameter	Interior diameter	Technical sheet	Revit
TFU4-238E	2 3/8"	3 1/2"	View File	Download
TFU4-312E	3 1/2"	3 1/2"	View File	Download
TFU6-238E	2 3/8"	5 1/2"	View File	Download
TFU6-312E	3 1/2"	5 1/2"	View File	Download
TFU6+-312E	3 1/2"	6 1/8"	View File	Download
TFU8-312E	3 1/2"	7 1/2"	View File	Download
TFU8+-312E	3 1/2"	8"	View File	Download

Adjustable heads

Standard adjustable heads

Product	Dimension	Technical sheet	Revit
TAS3C	3 1/2" x 3 1/2" Centered	View File	Download
TAS3O	3 1/2" x 3 1/2" Offset	View File	N/A
TAS5C	5 1/2" x 5 1/2" Centered	View File	Download
TAS5O	5 1/2" x 5 1/2" Offset	View File	N/A

U-shaped adjustable heads

Product	Dimension	Technical sheet	Revit
TAU4	For 4" x 4" beam (Interior 3 1/2")	View File	Download
TAU5	For 4 1/2" x 3 1/2" beam (Interior 4 5/8")	View File	Download
TAU6	For 6" x 6" beam (Interior 5 1/2")	View File	Download
TAU6+	For 5 1/2" x 5" beam (Interior 6 1/8")	View File	Download
TAU8	For 8" x 5" beam (Interior 7 1/8")	View File	Download
TAU8+	For 8" x 8" beam (Interior 8 1/8")	View File	Download

L-shaped adjustable heads

Product	Dimension	Technical sheet	Revit
TAL6	Base: 6" x 5", vertical: 6 1/4" x 5"	View File	Download

Other accessories

Foundation support brackets

Product	Dimension	Technical sheet	Revit
EF24-G	24’’ wall side x 18’’ pile side	View File	Download

Adjustable foundation support heads

Product	Dimension	Technical sheet	Revit
TAL-U312	For a 3 1/2" pile	View File	Download
TAL-U412	For a 4 1/2" pile	View File	Download

Rock anchors

Product	Description	Technical sheet	Revit
RA238L7-10	2 3/8’’ x 7′ anchor with 10’’ x 10’’ plate x 5/16’’	View File	Download
RA312L7-10	3 1/2’’ x 7′ anchor with 10’’ x 10’’ plate x 5/16’’	View File	Download
RA412L7-10	4 1/2’’ x 7′ anchor with 10’’ x 10’’ plate x 1/2’’	View File	Download

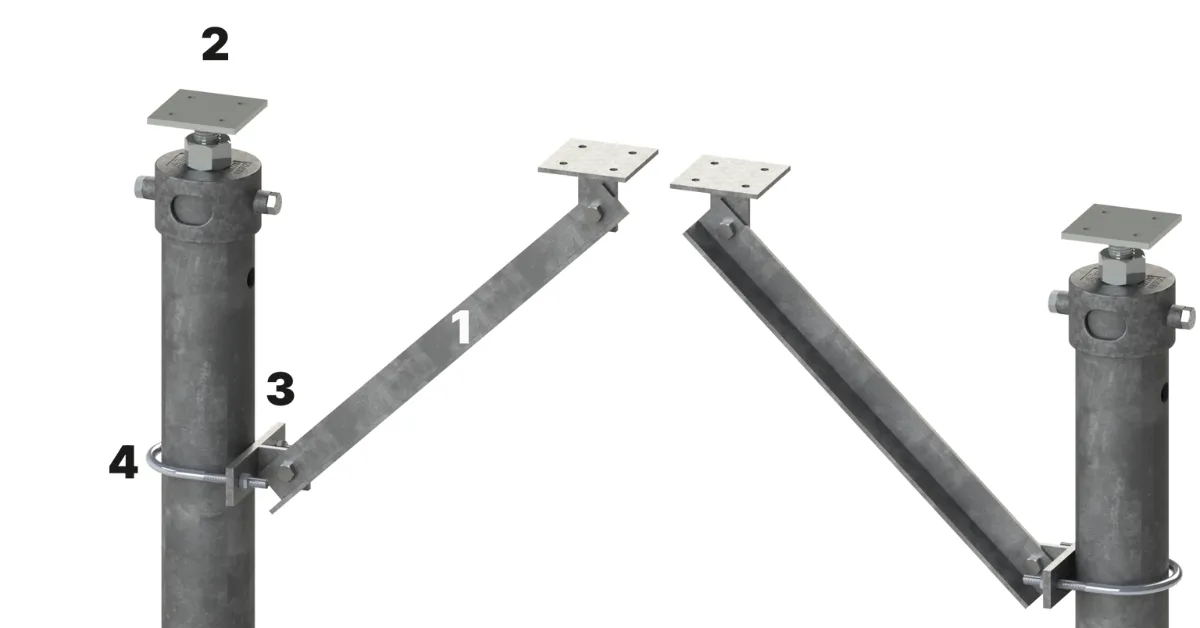

Adjustable braces

Product	# on photo	Description	Technical sheet	Revit
BCA-F	1	Angle iron 1 1 1/2" x 1 1/2" x 3/16" with holes every 2" (10' length)	View File	Download
BCA-BCU (2)	2	Square universal bracket	View File	Download
BCA-K238 (3)	3	Regular bracket for 2 3/8" pile	View File	Download
BCA-K312 (3)	3	Regular bracket for 3 1/2" pile	View File	Download
BCA-K238 (4)	4	U-bolt for 2 3/8" pile	View File	Download
BCA-K312 (4)	4	U-bolt for 3 1/2" pile	View File	Download

Pile stabilizers

Product	Dimension	Technical sheet	Revit
SP4L6-238	For 2 3/8" pile	View File	Download
SP4L6-312	For 3 3/8" pile	View File	Download

Multi-Functional Pole Kit

Product	Dimension	Technical sheet	Revit
CLT10	10′ aboveground (12′ total)	View File	Download
CLT14	14′ aboveground (16′ total)	View File	Download
CLT19	19′ aboveground (21′ total)	View File	Download
